TRA 1200

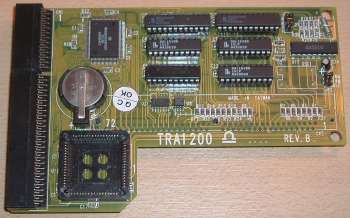

Hi Res Version, Front (1052 x 656)

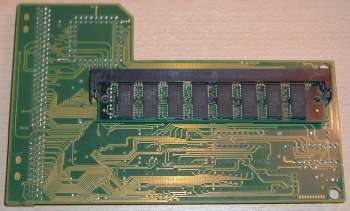

Hi Res Version, Back (976 x 590)
French Advert (1193 x 1705)

Processor: EC020@28Mhz
FPU: Optional 68881 or 68882 (PLCC)
MMU: None
Max Ram: 8MB
Ram Type: 1 x 72pin SIMM slot

An accelerator that plugs into the trapdoor slot of the A1200. The FPU is at 28Mhz or can be clocked asynchronously if a separate crystal is installed.

Thanks to Berend van der Meer and NicDouille
