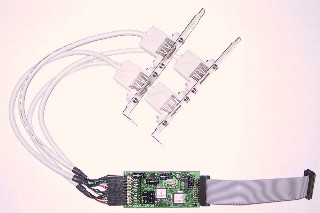

Subway

The Subway is a USB controller designed for the A1200 Clockport and other cards which contain compatible clock ports

- Compatible with USB 1.1 and USB 2.0 although it does not support high speed modes
- Integrated 4-port hub
- All ports are protected against over-voltage and short circuit
- Integrated power management by port
- Requires at least an 030@25Mhz and AmigaOS 3.1
- Power supply with 2.0 Amp minimum on 5V (each used USB port will use a maximum of 500mA, depending on connected device)

At the time of writing drivers exists for mice, keyboards, serial interfaces and parallel ports (printers). Third party drivers for digicam and webcam are in development.

Thanks to Michael Boehmer
