Retina Z2

Chipset(s) Symbios Logic (NCR) 77C22E
Graphics Memory 1MB or
2MB or
4MB
8bit Support: Yes
16bit Support: Yes
24bit Support: Yes (except for 1MB version)
Display Drivers
CyberGraphX V2: No
CyberGraphX V3: No
CyberGraphX V4: No (Despite adverts saying it does, it does NOT)
Picasso 96: No
EGS: Yes
Other: Yes (RetinaEmu RTG)

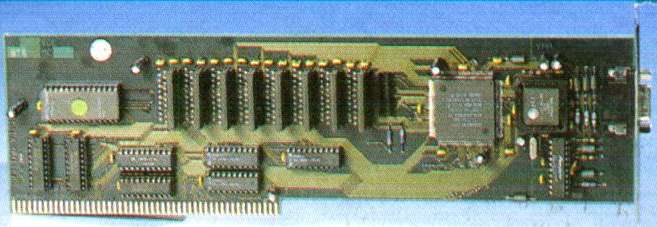

A Zorro II only graphics card. It was available in 1MB, 2MB or 4MB versions. The RAM on the card is in the form of ZIP chips and can be upgraded if necessary to a maximum of 4MB. The 1MB and 2MB versions used 414256 ZIP Chips, but the 4MB version uses 414400 ZIP chips used in alternating sockets (ie 1,3,5... etc). 80ns RAM generally works, however it used recommended that you use 70ns RAM or faster. The memory on board is automatically detected. However if the Retina does detect an incorrect memory size, or reports an absence of memory, then one jumper allows you to set the wait-state value which may be necessary with faster machines. It has a pixel clock of 90Mhz (8bit). Apprently the Retina Z2 has some sort of AGA compatibility mode, that may allow some programs intended for use with AGA to work, although it's quite slow, particularly with games.

Board Layout
                                                              |___
  ____________________________________________________________|
 |                                                            |
 |                                                            |
 |                                                            |
 |              || || || || || || || ||                       |# Video
 |              || || || || || || || ||                       |# Port
 |              || || || || || || || ||                       |# (HDD15)
 |                                                            |
 |               8  7  6  5  4  3  2  1                       |
 |                                                            |
 |                                                JP          |
 |                                                  ..        |
 |____________________________________________________________|
  |||||||||||||||||||||||||||                                 |

Example Display Modes
Resolution Depth Frequency
300x200 24 85Hz
600x400 24 80Hz
800x600 24 64Hz
1024 x 768 16 50Hz
1280 x 1024 (laced) 16 95Hz
1280 x 1024 8 50Hz
1600x1200 (laced) 8 80Hz

Jumpers
Jumper Open Closed
JP Enable wait states Disable wait states
