Power Flyer (junior) 1200/ Fast ATA 1200

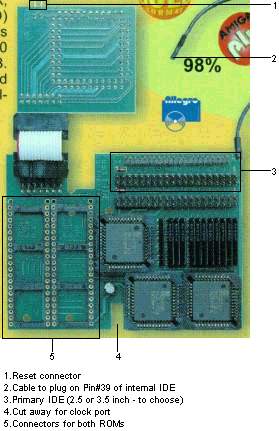

An adaptor for the Amiga 1200 that allows it to use IDE drives up to PIO mode 4 for a theoretical maximum thruput of 16.4MB/sec. Provides two independant IDE connectors. Connects into the A1200's ROM socket, and the ROMs are mounted onto the card. The card is also connected to pin 39 of the internal IDE Connector. Reported speeds of this board have been 7Mb/sec in PIO 4 and 8MB sec in PIO 5)

The Power Flyer junior is a 16bit version of this card, but is fully upgradeable to 32bit

Thanks to Thomas Barth and Steve-David Marguet
