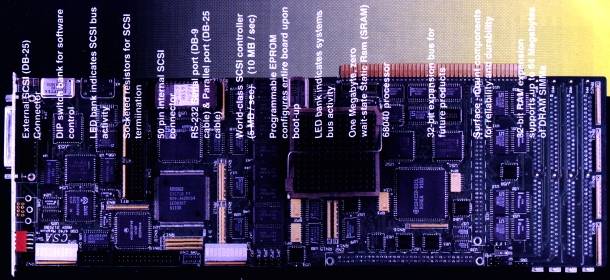

Larger version of image (609x769)
| Processor: | 040@33Mhz |
| FPU: | Internal |
| MMU: | Internal |
| Max Ram: | 64MB |
| Ram Type: | 4 x 72pin SIMMs Slots. (Plus 1MB SRAM surface mounted) |
An accelerator for the A2000 which plugs into the CPU Fast Slot. The Magnum 40/4 also includes SCSI-II onboard and provides a 50pin internal connector and a DB25 external connector, as well as an additional parallel port (25pin) and serial port (9 pin).
Thanks to Luis Garcia
