Type | Ethernet |
10Base2 (BNC & Coax, ThinNet): | Yes |
10Base5 (AUI & Coax, ThickNet): | No |
10BaseT (RJ45 & UTP): | No |
100BaseTX (RJ45 & UTP): | No |
SANA-II Driver: | Yes |
MNI Driver: | Yes (z2-dp8390.mni) ** See Below |
Other Driver: | No |

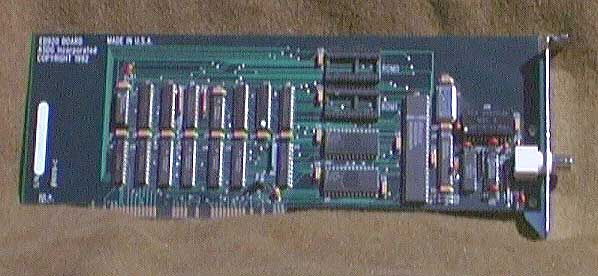

Full length Zorro II network card. The card has a soldered jumper to change the interrupt from 2 to 6. Also this card does not have a MAC address by default, so this must be set in the TCP/IP stack or using a piece of software called s2util . At least one of the ROM sockets is for adding a ROM containing the MAC address, the other is probably for adding a boot ROM. The early cards were called LANRover but later had to be renamed due to legal reasons.
** When using MNI drivers you must set the correct options for the MNI driver. If you have the interrupt jumper set to 2 then you must use "INT=2" if it is set to 6 then you must use "INT=6". You must also specify a MAC address in software if your particular card does not contain a MAC ROM.
Thanlks to Erik I. Bolsų
