IDE-Mux





Schematics

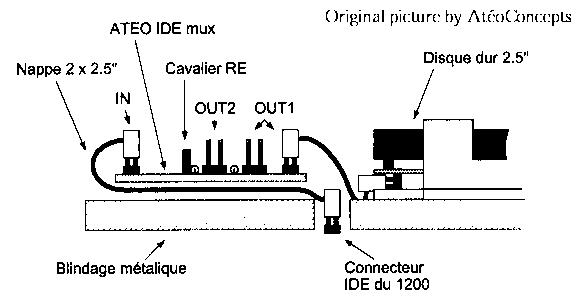

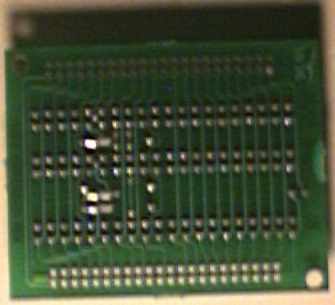

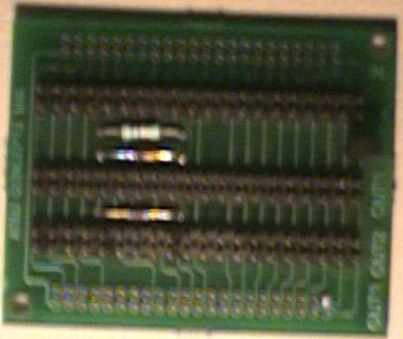

IDE Splitter which allows you to connect 4 IDE devices to the IDE Controller. There are two versions, one for the A1200/A600 and one for the A4000. The picture is of the A1200 version.
