AmigaNet Zorro II (Hydra Z2)

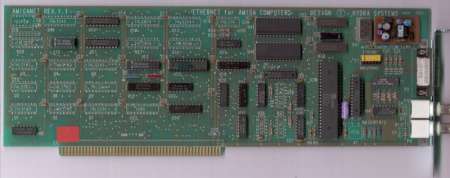

Picture of a Rev 1.1 AmigaNet card

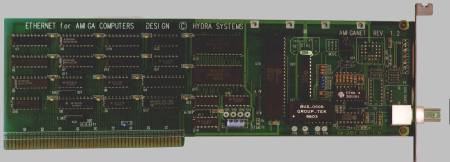

Picture of a Rev 1.2 AmigaNet card

Hi Res Version of AmigaNet Rev 1.1 (800 x 351)
Hi Res Version of AmigaNet Rev 1.2(3902 x 1384)

Type: Ethernet
10Base2 (BNC & Coax, ThinNet): Yes
10Base5 (AUI & Coax, ThickNet): Yes (Rev V1.1 and earlier boards)
10BaseT (RJ45 & UTP): Yes (no for Rev V1.1 boards and earlier, some cards may require the connector upgrade)
100BaseTX (RJ45 & UTP): No
SANA-II Driver: Yes (hydra.device)
MNI Driver: Yes (z2-dp8390.mni)
Other Driver: No

The AmigaNet is a full length Zorro II Ethernet card (NatSemi 32490CN) for the Amiga. Depending on the specific versions of the card, it supports 10Base5, 10Base2 and 10BaseT. To support 10BaseT, your card may require an optional upgrade to attach the RJ45 connector to the board. Earlier revisions of the board (eg Rev 1.1) have two BNC connectors, rather than the conventional single connector that most ethernet cards have. This means you do not need the "T" connector which you do with other ethernet cards. You simply attach both BNC connectors to the same network segment. The AmigaNet has been reported to transfer at up to 600k/sec.


There is only one set of jumpers, block F1, which has six pairs of pins. When all are in the down position, it is set to ThinNet 10Base2 (CheaperNet). When all are jumpered in the up position, it is set to use the AUI port for 10Base5.

Board Layout
 |                                                                 |___
 |                                                                 |
 |                                               :::::: F1         |
 |                                                                 |# 10Base5
 |                                                                 |# /AUI
 |                                                                 |# Port
 |                                                                 |# (DB15)
 |                                                                 |#
 |                                                                 |_
 |                                                                 |_| BNC
 |                                                                 |_
 |                                                                 |_| BNC
     |||||||||||||||||||||||||||                                   |

Thanks to Mats Magnusson, Thomas Weygand, Calum Tsang and Warren Block
