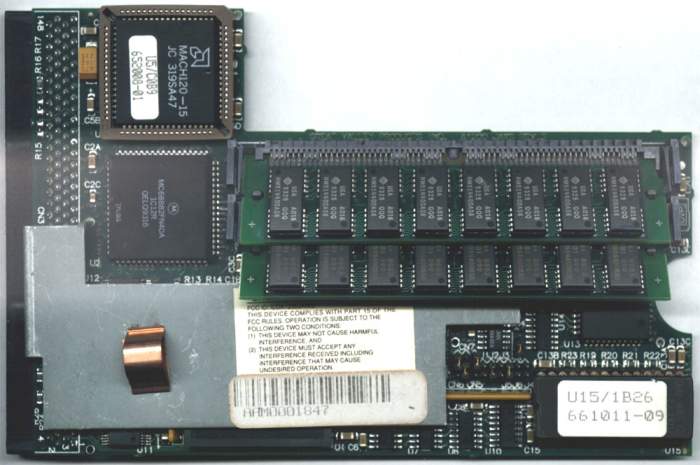

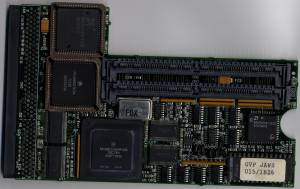

Hi Res Version of Front (1979 x 1250)

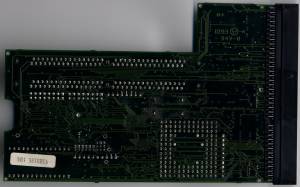

Hi Res Version of Back (1971 x 1229)
| Processor: | EC030@40Mhz |
| FPU: | Optional 68882@40Mhz (Some versions are PGA, others PLCC) |
| MMU: | None |
| Max Ram: | 32MB |
| Ram Type: | 2 x GVP 64pin SIMM slots. |
An accelerator which plugs into the trapdoor slot of the A1200. The GVP 1230 uses GVP 64pin SIMMs which are not necessarily compatible with the other 64pin SIMM formats which exist.
Thanks to Daniele Gratteri and Pascal Rielland
