Framegrabber PAL/NTSC

Download the Operators Manual
Download the User Manual

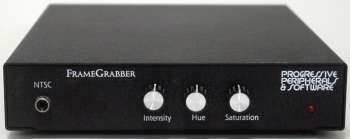

Hi Res Version of Front (1478 x 590)

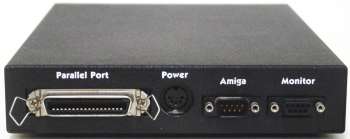

Hi Res Version of Back (1450 x 576)
Image of the PSU (1444 x 1112)
Image of the PSU Plate (536 x 428)
Image of the PSU Connector (299 x 291)

The Framegrabber is a real-time colour video digitizer capable of capturing 30 frames/sec in 4096 colours. It is available in both PAL and NTSC versions and is capable of digitizing at 320 x 200 or 640 x 400 including overscan. It connects to both the parallel port and the Amiga's monitor port. The monitor in turn is then connected to the framegrabber. This allows the framegrabber to be operated using one monitor to switch between the video source and the Amiga's video. The unit contains controls to alter the hue, saturation and intensity of the video.

Thanks to Iggy Drougge and Takahasi Kasiko
