2080

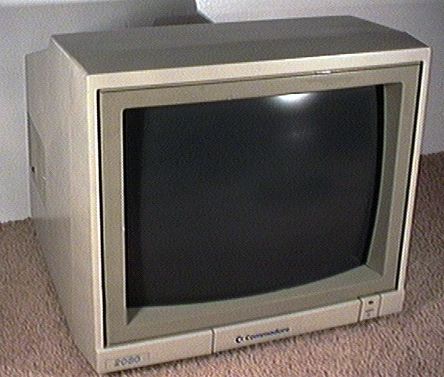

14" PAL and NTSC monitor. Chroma, luma, composite and audio inputs with a SCART input connector with RGB and composite inputs.. The Commodore A2080 was essentially a high persistence phosphor model of the 1084 to reduce flicker in NTSC modes. The monitor has a "long afterglow" which may leave a slight temporary trail with moving objects on screen.

2080 Pin-Outs (SCART Euroconnector)

   Pin 1: Unused
   Pin 2: Audio Input (0.5 Vrms/ > 10Kohms)
   Pin 3: Unused
   Pin 4: Audio Ground
   Pin 5: Blue Ground
   Pin 6: Audio Input (0.5 Vrms/ > 10Kohms)
   Pin 7: Blue Video (0.7 Vpp/ 75 ohms)
   Pin 8: Unused
   Pin 9: Green Ground
  Pin 10: Unused
  Pin 11: Green Video (0.7 Vpp/ 75 ohms)
  Pin 12: Unused
  Pin 13: Red Ground
  Pin 14: Unused
  Pin 15: Red Video (0.7 Vpp/ 75 ohms)
  Pin 16: Fast Blanking
  Pin 17: CVBS Ground
  Pin 18: Fast Blanking Ground
  Pin 19: Unused
  Pin 20: CVBS Input (1 Vpp/ 75 ohms, sync signal for linear RGB input)
  Pin 21: Screening Plug

2080 Pin-Outs (Digital RGB 8-Pin DIN)

  Pin 1: Status Computer (?)
  Pin 2: Red
  Pin 3: Green
  Pin 4: Blue
  Pin 5: Intensity
  Pin 6: Ground
  Pin 7: Horizontal Sync or Composite Sync
  Pin 8: Vertical Sync
