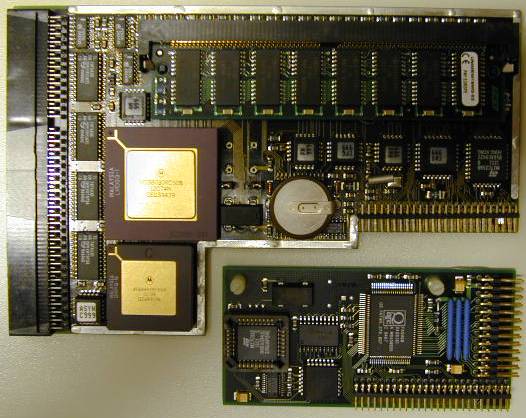

Picture of the card with the optional SCSI controller
Picture of the card with the optional SCSI controller
| Processor: | EC030@40Mhz or 030@50Mhz |
| FPU: | Optional 68882. (Some versions are PGA, others are PLCC) |
| MMU: | None in EC030s, Internal in full 030s |
| Max Ram: | 32MB |
| Ram Type: | 1 x 72pin SIMM slots. |
An accelerator which plugs into the trapdoor slot of the A1200. An optional Fast SCSI-II controller is also available. The card has a MapRom jumper for copying Kickstart into Fast RAM for improved performance.
Thanks to Jens Schroeder, Stephan Neise and Tomas Gärdh
