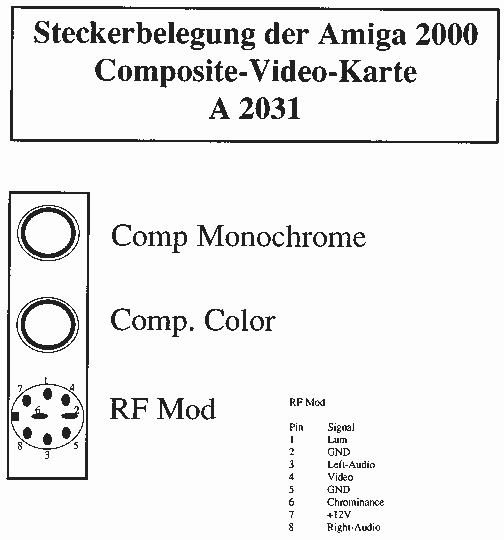

Picture showing the pinouts of the A2031

Hi Res Version of Image 1 (1240 x 690)
Hi Res Version of Image 2 (702 x 742)
Hi Res Version of Image 3 (770 x 852)
Hi Res Version of Image 4 (1280 x 400)
Hi Res Version of Image 5 (1108 x 728)
Hi Res Version of Image 6 (1280 x 603)

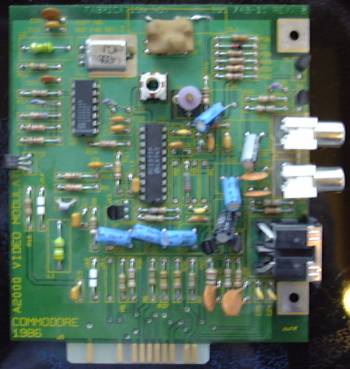

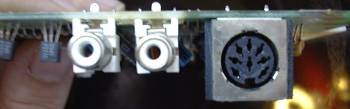

This card is designed for use with the A2000 and contains an 8pin DIN connector for RF modulation which is compatible with that found on the A1000 as well as a composite Colour phono connector and a composite mono phono connector. This composite video card exists in two versions, the A2031 is the NTSC version whilst the A2032 is the PAL version.

Thanks to Johan Erkers, Ronald van Dijk and Rainer Schreurs
