Commodore 2300/2301 and Home Video Kit

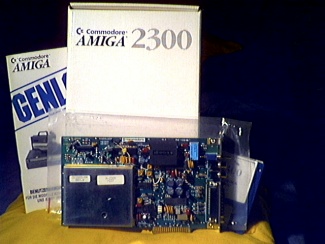

Picture showing the A2300

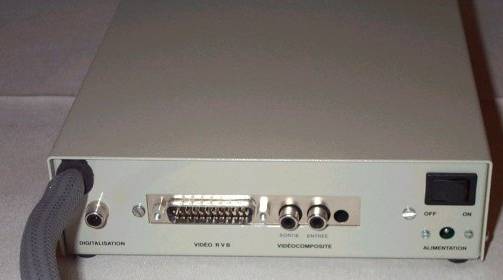

Picture of the external version of the A2301

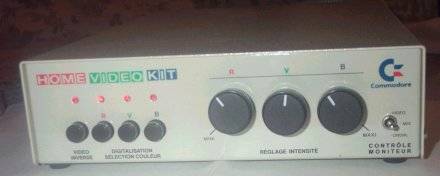

Picture of the external version of the A2301

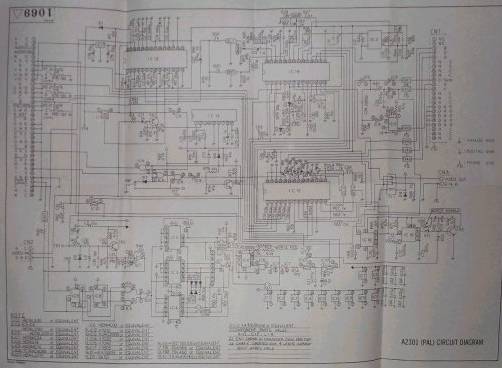

Picture of the A2301 schematics

Hi Res Version of Schematics (1400 x 996)

The original commodore A2000 genlock. It inserts into the video slot of the A2000 (and compatibles). Contains a 23pin monitor connector and two RCA connectors for video in and video out. The only difference between the A2300 and the A2301 is that the former is NTSC and the latter is PAL. An external version of the A2301 was available and was called the Home Video Kit. This was probably the A2301 actually mounted in an external case.

Thanks to Frank Cieslewicz and Beppe Niccolini
