Processor: 040@28Mhz, 040@33Mhz

Max Ram: 64MB

Ram Type: 16 x 30pin SIMM (Some models may have had 4 x 72pin SIMMS, but this is unconfirmed)

SCSI: SCSI 2 Onboard

MEMORY | 1MB | 4MB | BANK0 | BANK1 | BANK2 | BANK3 | BJUMPERS |
---|---|---|---|---|---|---|---|

4MB | 4 | - | 1MB X 8 | - | - | - | :||: |

8MB | 8 | - | 1MB X 8 | 1MB X 8 | - | - | |:|: |

12MB | 12 | - | 1MB X 8 | 1MB X 8 | 1MB X 8 | - | ::|: |

16MB | 16 | - | 1MB X 8 | 1MB X 8 | 1MB X 8 | 1MB X 8 | ||:: |

16MB | - | 4 | 4MB X 8 | - | - | - | |||: |

20MB | 4 | 4 | 1MB X 8 | 4MB X 8 | - | - | :||: |

24MB | 8 | 4 | 1MB X 8 | 1MB X 8 | 4MB X 8 | - | |:|: |

28MB | 12 | 4 | 1MB X 8 | 1MB X 8 | 1MB X 8 | 4MB X 8 | ::|: |

32MB | - | 8 | 4MB X 8 | 4MB X 8 | - | - | |||: |

36MB | 4 | 8 | 1MB X 8 | 4MB X 8 | 4MB X 8 | 4MB X 8 | :||: |

40MB | 8 | 8 | 1MB X 8 | 1MB X 8 | 4MB X 8 | 4MB X 8 | |:|:: |

48MB | - | 12 | 4MB X 8 | 4MB X 8 | 4MB X 8 | - | |||:: |

52MB | 4 | 12 | 1MB X 8 | 4MB X 8 | 4MB X 8 | 4MB X 8 | :||:: |

64MB | - | 16 | 4MB X 8 | 4MB X 8 | 4MB X 8 | 4MB X 8 | |||:: |

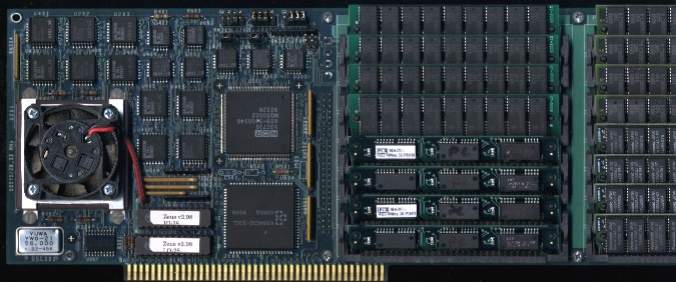

The Zeus 2040 has three banks of jumpers, labelled A, B ,C. The above memory configuration refers to BANK B.

Thanks to Roy Cho and Jason Downs
