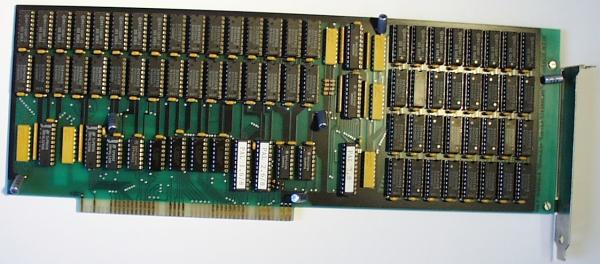

RJTC Memory Expansion

High Res Version (1123 x 495)

Zorro II card which has the ability to provide up to 8MB of memory in steps of 2MB. Some PALs need changing to switch between 2/4 and 6/8MB setups. RAM chips are type 511000

Thanks to Michael Boehmer
