Mastercard


Hi Res Version (1399 x 527)

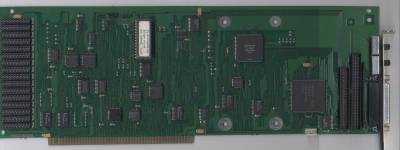

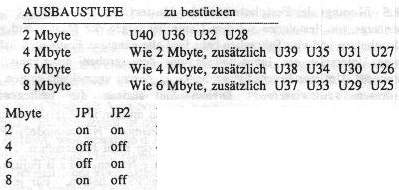

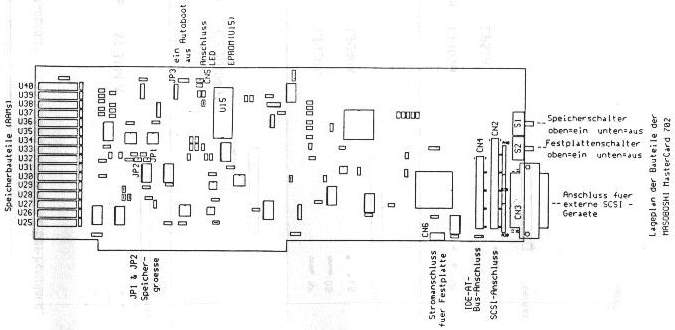

Full length Zorro II card which provides both SCSI and IDE. The card also has an external DB25 SCSI connector and has screw holes for mounting a hard drive. RAM can be added via 4Mbit ZIP-Ram for a maximum of 8 MB. Pin 1 faces the short end of the card. All hard drives on the card are accessed using masoboshi.device including any IDE Drives. A on-board chip translates SCSI commands into IDE. The IDE drives are on unit numbers 8 and 9.

Thanks to Frank Ciesiewicz
