|Processor:||EC030@40Mhz or 030@50Mhz|
|FPU:||Optional 68882@40Mhz (PLCC)|
|MMU:||None in EC030s, Internal in full 030s.|
|Max Ram:||32MB (64MB with additional SIMM socket)|
|Ram Type:||1 x 72pin SIMM slots. (An additional SIMM socket can be fitted), (EDO RAM works, but is not taken advantage of)|

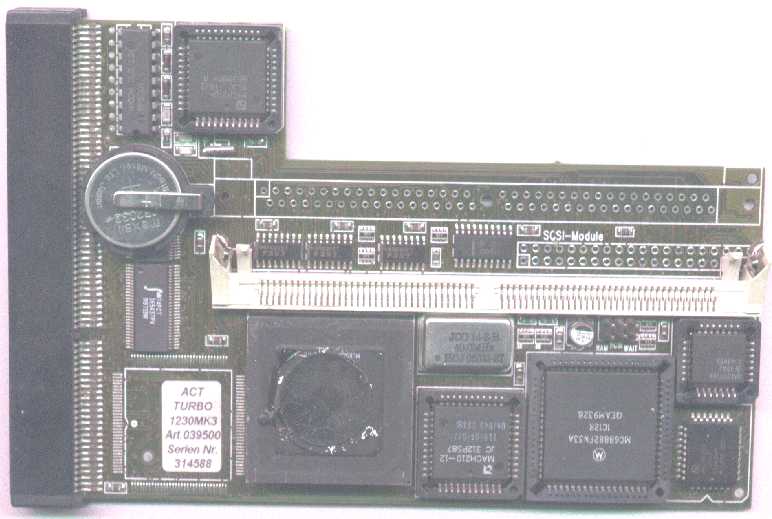

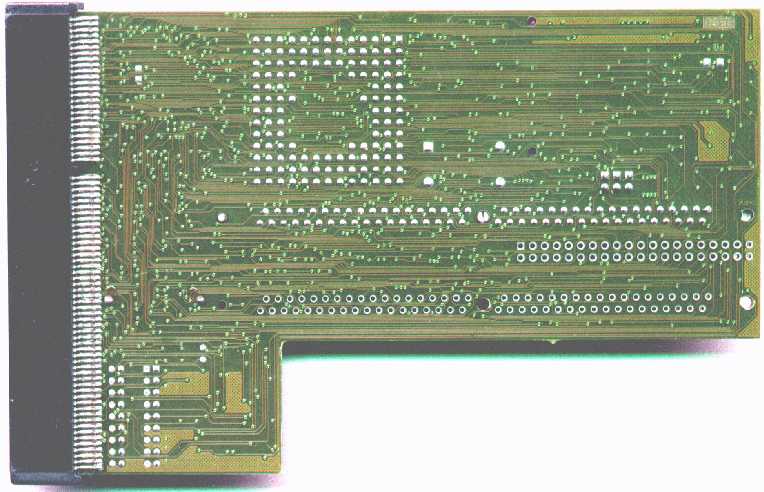

An accelerator which plugs into the trapdoor slot of an A1200. The 40Mhz EC030 and 68882 are overclocked 33Mhz components. The card has an optional SCSI-II controller available for it, a battery backed up clock and is fully PCMCIA compatible. The card contains a jumper for 60ns mode memory. An additional SIMM socket could be fitted by the dealer, or the end user if they were competent enough.
Thanks to Luis Alberto Francischini
