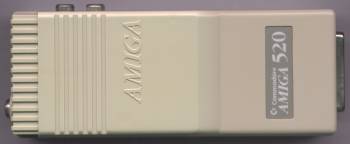

Picture showing the top of the device

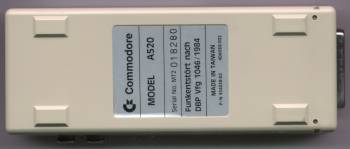

Picture showing the bottom of the device

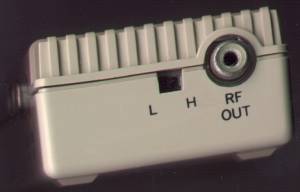

Picture showing the back of the device

Picture showing the side of the device

Picture showing the packaging

Picture showing the manual

Download the Manual
Hi Res Version of Top (1776 x 732)
Hi Res Version of Bottom (1752 x 746)
Hi Res Version of Side (1900 x 480)
Hi Res Version of Back (768 x 493)

The A520 was a TV modulator that was generally supplied with the A500 series of machines but can be used with almost any Amiga. It converts the RGB port for use with a TV by supplying an RF (aerial lead) connector. The two audio outputs were also attached the modulator for sending the audio signals down the RF lead. The L H switch is for switching between two slightly different frequencies in case it was causing or receiving interference from another device such as a VCR.

Thanks to Dagfinn Olsen
